Migrating your ingresses to K3s 1.20+ API format

Ngày tạo: 13/06/2022 | Cập nhật: 13/06/2022

Source: https://www.civo.com/learn/migrating-your-ingresses-in-k3s-1-20

Kubernetes version 1.20+ introduces the networking.k8s.io API version as stable. If you have ingresses that predate K3S 1.20, you have until Kubernetes 1.22 to update them. Until then, if you use old-style ingress definitions, you will receive a warning like Warning: networking.k8s.io/v1beta1 Ingress is deprecated in v1.19+, unavailable in v1.22+; use networking.k8s.io/v1 Ingress when you apply the ingress to a cluster.

What do I need to do?

If you have an ingress definition that looks like the following:

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: fabric-suzuhara-ingress
  namespace: minecraft
  annotations:
    kubernetes.io/ingress.class: traefik
spec:
  rules:
  - host: m0test.suzuhara.moenet.internal
    http:
       paths:
         - path: /
           backend:
             serviceName: fabric-suzuhara-service
             servicePort: 25565

Then you need to convert some things to work with the newer, stable Ingress resource and networking.k8s.io/v1 API version. An example would be the following:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: mysterium-dvpn-node-ingress
  annotations:
    kubernetes.io/ingress.class: nginx
spec:
  rules:
  - host: dvpn.ryza.suzuhara.internal
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
             name: mysterium-dvpn-node-svc
             port:
               number: 4449

The main difference is that port now defines explicit number and service fields here, which is drastically different than the earlier, non-stable extensions/v1beta1 version. Some of the other main changes in /V1 include:

• spec.backend -> spec.defaultBackend
• erviceName -> service.name
• servicePort -> service.port.name (for string values)
• servicePort -> service.port.number (for numeric values)
• pathType no longer has a default value in v1; Exact, Prefix, or ImplementationSpecific must be specified for each.

Make sure you consult the Kubernetes Documentation for the updated specification for Ingresses and Networking resources.

Notes

• Before apply new modification, you can run: kubectl apply -f some-yaml-file.yaml --dry-run=server to validate file format and data.

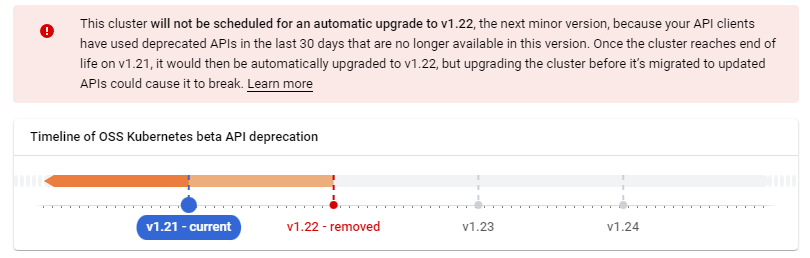

• GKE will block cluster upgrate to API 1.22 if we still using deprecated APIs.
